Gespasa Diesel Meter Pulser
Sale

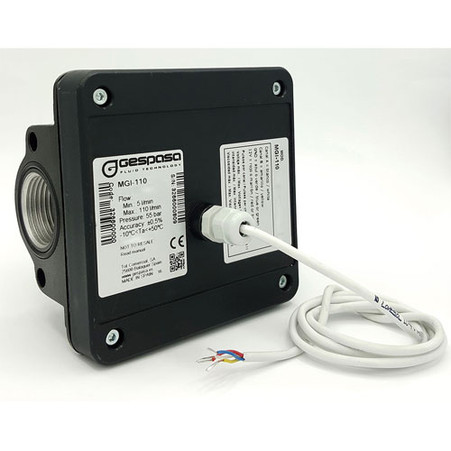

Gespasa MGI-110 Pulser 90º Hall Effect

Gespasa
SKU:
32660
$605.00 $462.00
$605.00
(You save $143.00 )
Weight:
1.10 KGS
Width:
12.30 (cm)
Height:
12.30 (cm)
Depth:
9.00 (cm)
Current Stock:
Adding to cart… The item has been added
Description

Gespasa pulsers for sale for fluid management across Australia

GESPASA MGI-110 · PULSER 90 ±0.5% · F1" BSP

Liquids: Diesel Diesel  Lubricant Lubricant

  • Pulser for its in-line assembly, making easier the exact information of the fluid management and control systems.
  • For private use
  • It gives pulses to an external electronics.
  • Suitable for diesel and lubricant measurement

Technical data:

  • Flow (approx.):
    • 5-110 l/min (diesel)
    • 5-80 l/min (lubricant)
  • Viscosity: 2-2000 cSt
  • Accuracy: ±0.5 %
  • Max. pressure loss: 0,3 bar (diesel)
  • Max. pressure: 55 bar
  • Min./max. temperature: -10 ºC / +50 ºC
  • Maximum Humidity: 95 H.R.
  • Noise level: LeqA < 70 dBA
  • Two channels: 41 pulses per litre and channel
  • Connection through thread or flange: F1" BSP. Direct connection to the GESPASA pumps. Optional: flanges with thread of 1"

MGI-110 · Pulser · 90º Hall Effect

Max. voltage: 28 VDC
Max. power: 0.15 - 0.72w
Max. intensity: 30 mA
