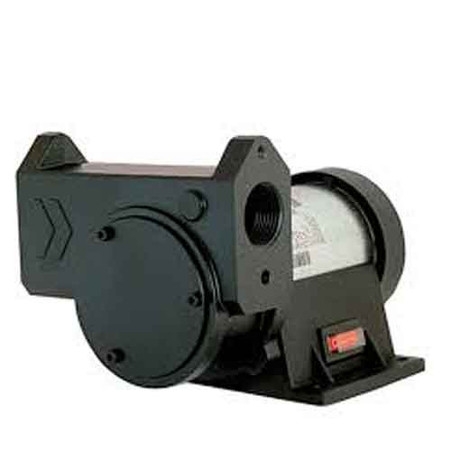

24 Volt Diesel Pump 50LPM
Self-suction-self-priming.
Eccentric self-adjusting blades supplied with recirculation bypass
Suction: 2.5m
Delivery: 20m Free flow
45-50 l/min Consumption
9-17A (24VDC)

Code
AG-3524

Application
Diesel Transfer Equipment

Key Features

Self-suction-self-priming. Eccentric self-adjusting blades
Supplied with recirculation bypass
Suction: 2.5m
Delivery: 20m
Free flow: 45-50 l/min
Consumption: 16-24A (12VDC) and 9-17A (24VDC)
Motor: 0.30kW (12VDC and 24VDC) self-ventilated, dust protection
R.P.M: 3.000rpm
Connection through F3/4" threads
Continuous duty
2m cable with clamps
Stainless steel suction filter 352 micron
Luminous switch with IP-55 protection

Specifications
Rated Voltage: 24V, DC, 9-17, Amp
Pump Size: 50L/min
Dimensions LxWxH: 195x150x120
Product Weight: 4.3Kg

Options Available
Digital Meter
Mechanical Meter
