Gespasa oil Pump with Pressure Switch
Sale

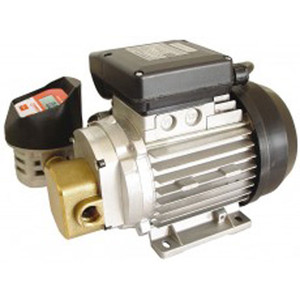

Gespasa 240V Oil Pump SEA-88 20-25L/Min .37Kw with Pressure Switch

Gespasa
SKU:
03110
$3,300.00 $2,750.00
$3,300.00
(You save $550.00 )
Weight:
0.00 KGS
Current Stock:
Adding to cart… The item has been added
Description

Gespasa 240V oil pumps with pressure switch for sale

GESPASA EA-88 (0.37 kW) 230 VAC 20-25 l/min with 10 bar pressure switch

Liquids: Lubricant Lubricant

EA-88 (0,37kW) 230VAC · 20-25L/MIN

Self-suction gear pumps for the lubricant transfer.

In an industrial supply installation at long distance, it is advisable to equip the pump with PRESSURE SWITCH, that allows the pump starting and stopping through the nozzle opening or closing.

It has built-in a check valve.

They are suitable for its use in the agriculture, building, public works and industry.

Technical data:

  • With recirculation bypass system
  • It is suitable for lubricant transfer with average/low density.
  • Suction: 2,5 m · Delivery: 40 m
  • Oil flow: 20-25 l/min (SAE-20/50 W at 25 ºC)
  • Motor: 0,37 kW self-ventilated 230 VAC 50 Hz single-phase. IP-55 protection
  • With thermal protector
  • Consumption: 2-4 A
  • 1,500 rpm
  • Bypass pressure: 5-6 bar
  • Inlet / outlet: 1/2" GAS (BSP)
  • ON/OFF Switch
  • 3 m 230 VAC connection cable with injected plug
  • Body material: brass
  • Pressure Switch

  • Carry handle NOT Included
