Liquids:
Diesel

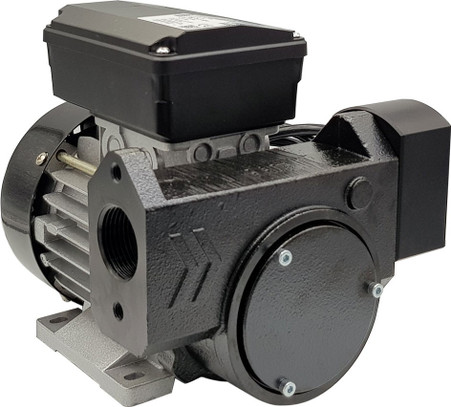

GESPASA 240V 100LPM DIESEL TRANSFER PUMP WITH AUTO STOP KIT
JUST RELEASED!
GESPASA introduces the “Automatic Stop” Kit adaptable to any type of pump and the GESPASA pumps with this kit built in.
The kit is easy to install and it does not create any head loss.
Function:
The system stops the pump after 60 seconds without detecting any fluid flow.
It avoids damages in the pump caused by working in bypass during a long time and improves the installation security.Code
00360-CF00013
Application
Diesel Transfer Equipment
Key Features
Self-suction - self-priming.
Eccentric self-adjusting blades with recirculation bypass
Suction: 5m
Delivery: 20m
Free flow: 100 l/min
Consumption: 3.5-6A (240V) Motor: 0,74kW, 230VAC 50Hz single phase, self-ventilated, dust protected
R.P.M.: 1.500rpm
Continuous duty
IP-55 Protection
3m electric cable
Connection through F1" (BSP) threads or flanges
Specifications
Rated Voltage: 240V, AC, 3.5-6 Amp
Pump Size: 100L/min
Dimensions LxWxH: 350x165x245
Product Weight: 15.15 Kg
Options Available
Digital Meter
Mechanical Meter
Also available in 12 & 24 Volt
