Gespasa Mechanical Diesel Meter - NEW

$385.00 $330.00
(You save $55.00)

Product Description

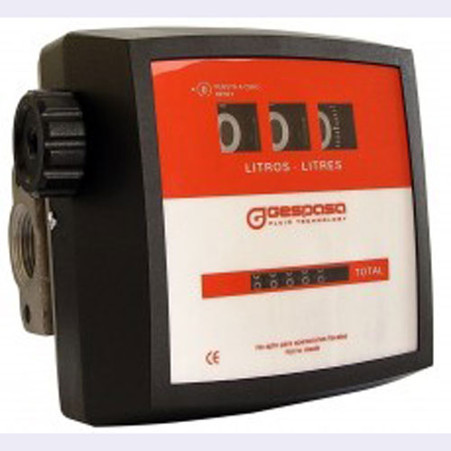

Gespasa Mechanical Meter

  • Aluminium body
  • Made of aluminium and high quality plastic materials. Its measuring chamber is fireproof of oscillant disc and it allows to transfer any type of hydrocarbon liquids (please, consult other liquids).
  • Flow: 10-90 l/min
  • Accuracy: ±1 %
  • Partial indicator of 3 digits and totalizer of 6 digits
  • Maximum operation pressure: 5 bar
  • Resistance pressure: 15 bar
  • Maximum temperature: 60 ºC
  • Minimum temperature: -10 ºC
  • ATEX IIG Category
  • Protection mode: Ex h IIB T5Gb
  • Polyamide + Fibreglass housing
  • Inlet/outlet Connections: 1" GAS (BSP)
  • Inlet connection through threads or flanges
  • For private use, not suitable for fiscal operations

Size & Weight:- approx

Size: 180x132x165 mm (length x width x height)

Weight: 1,95 kg

8 Different Positions



Product Videos

MG-80 SKILLS 01:04

Mechanical meter suitable for hydrocarbon fluids (please ask for other fluids) Flow: 10-90 l/min Accuracy: ±1 %

  • MG-80 SKILLS
    Mechanical meter suitable for hydrocarbon fluids (please ask f...
  • How to calibra...
    Video where we try to explain the steps to follow to calibrate...
