Liquids:  Diesel   Petrol   Biodiesel

It is suitable for particle microfiltration from 3 to 15 µm (micron) (the filtering paper is water absorbent) or 50 µm (micron).

It is possible to drain through the manual drain valve placed in the microfilter bottom.

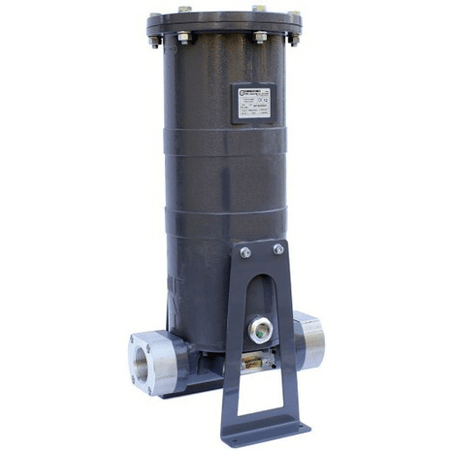

This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.

Differential manometer where you can see when the filter level is exceed.

The microfilter is supplied with the filtering element installed.

Technical features:

• Filtration:
  • 3 µm (micron) · water absorbent (mod. FG-300/3)
  • 5 µm (micron) · water absorbent (mod. FG-300/5)
  • 15 µm (micron) · water absorbent (mod. FG-300/15)
  • 50 µm (micron) (mod. FG-300/50)
• Capacity: 15 litres in the housing interior
• Flow: 300 l/min
• Microfilter cover and body: Aluminium
• Differential manometer
• Inlet / Outlet Connections: F2" BSP or flange
• Manual lower drain valve
• Superior drain valve to eliminate the inner air of the filter
• Installation: in the suction or delivery of the pumping kit
• Maximum operating pressure: 6 bar
• Maximum housing pressure: 10 bar

Dimensions & Weight

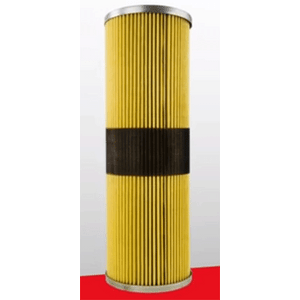

Spare part:
- Absorbent filtering spare kit of 3 µm (micron) + joints	661908002
- Absorbent filtering spare kit of 5 µm (micron) + joints	661908003
- Absorbent filtering spare kit of 15 µm (micron) + joints	661908000
- Impact filtering spare kit of 50 µm (micron) + joints	661908001
Optional:
- AFP Cabinet	57000
