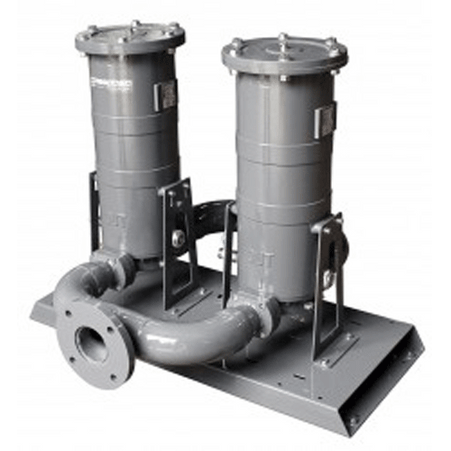

Gespasa FG-700 Microfilter

Gespasa Micro FIlter FG700 15 Micron

Gespasa
SKU:
66250
$15,400.00
Weight:
74.00 KGS
Width:
90.00 (cm)
Height:
73.00 (cm)
Depth:
83.00 (cm)
Current Stock:
Adding to cart… The item has been added
Description

15 Micron micro filters with manometers and more for sale

Liquids: Diesel Diesel  Petrol Petrol  Biodiesel Biodiesel

  • It is suitable for particle microfiltration up to 15 µm (micron). The filtering paper is water absorbent.
  • Optional: 50 µm (micron) for Biodiesel (non-absorbent)
  • It is possible to drain through the manual drain valve placed in the microfilter bottom.
  • Optional with 2 or 3 FG-300 elements to get more flow rate:700 or 1,000 l/min
  • This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.
  • Differential manometer that shows when the level of the filter is exceeded.
  • The microfilter is supplied with the filtering element installed.

Technical features:

  • Filtration: 15 µm (micron) · Optional: 50 µm (micron) non-absorbent
  • Capacity: 15 litres in the housing interior
  • Flow: 700 or 1,000 l/min (according to the number of FG-300 elements)
  • Microfilter cover and body: Aluminium
  • Differential manometer
  • Inlet / Outlet Connections: 3" or 4"
  • Manual lower drain valve
  • Installation: in the suction or delivery of the pumping kit
  • Maximum operating pressure: 6 bar
  • Maximum housing pressure: 10 bar
FG-700 · Size and weight (approx.):
  • Dim.: 900x826x729 mm (length x width x height)
  • Weight: 74 kg
